Aluminum Air Tank

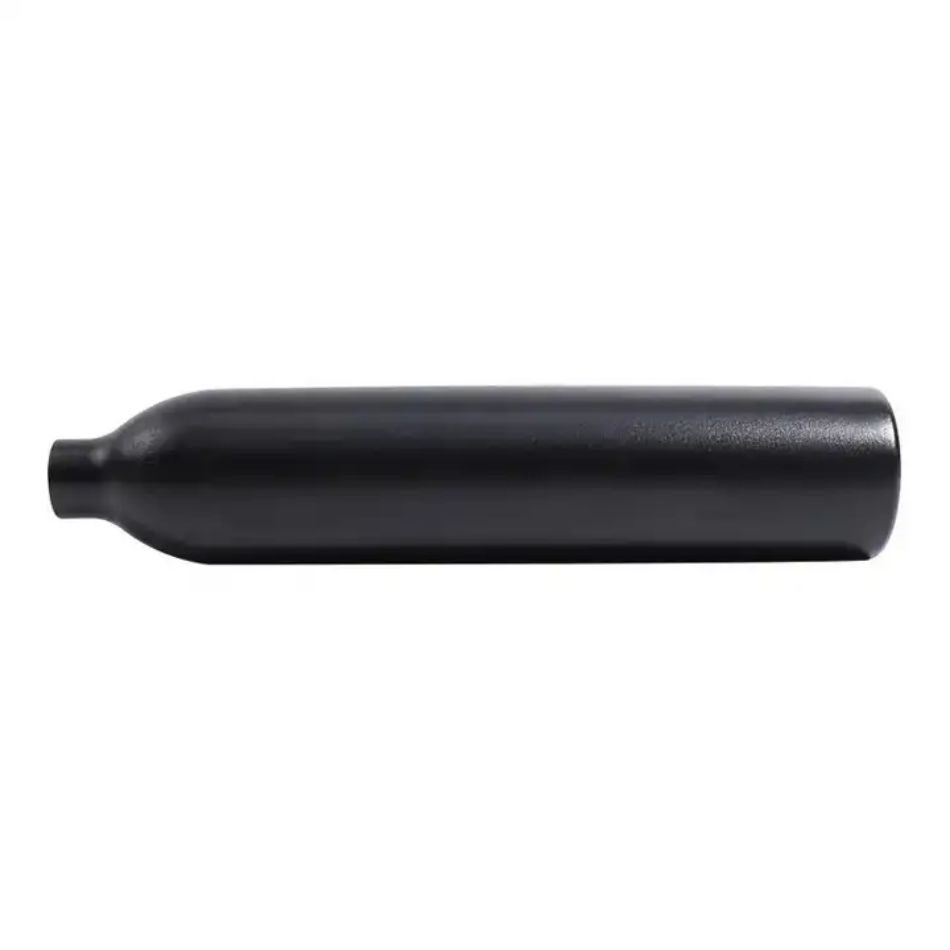

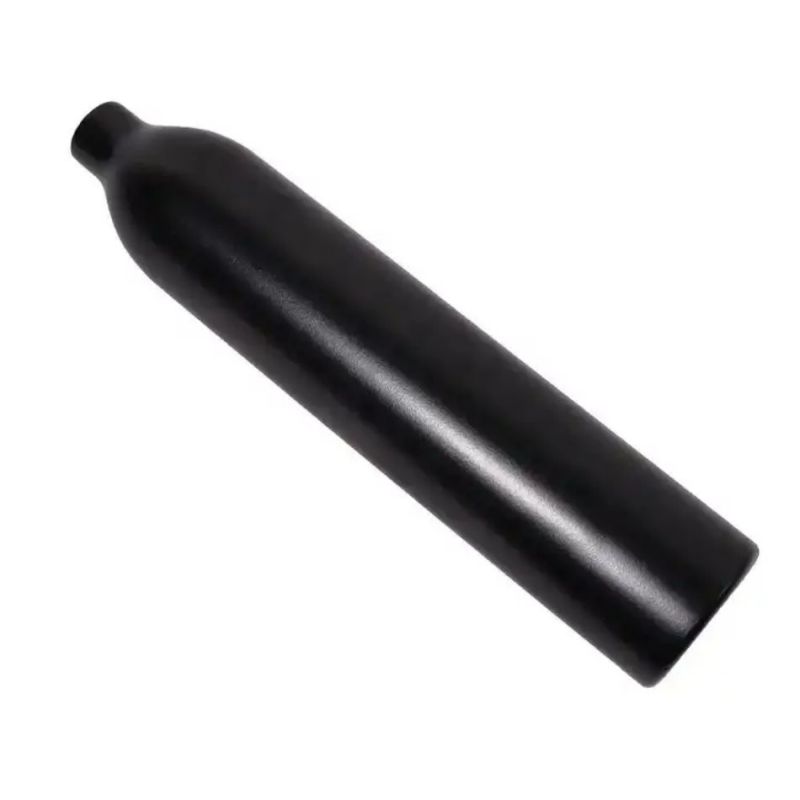

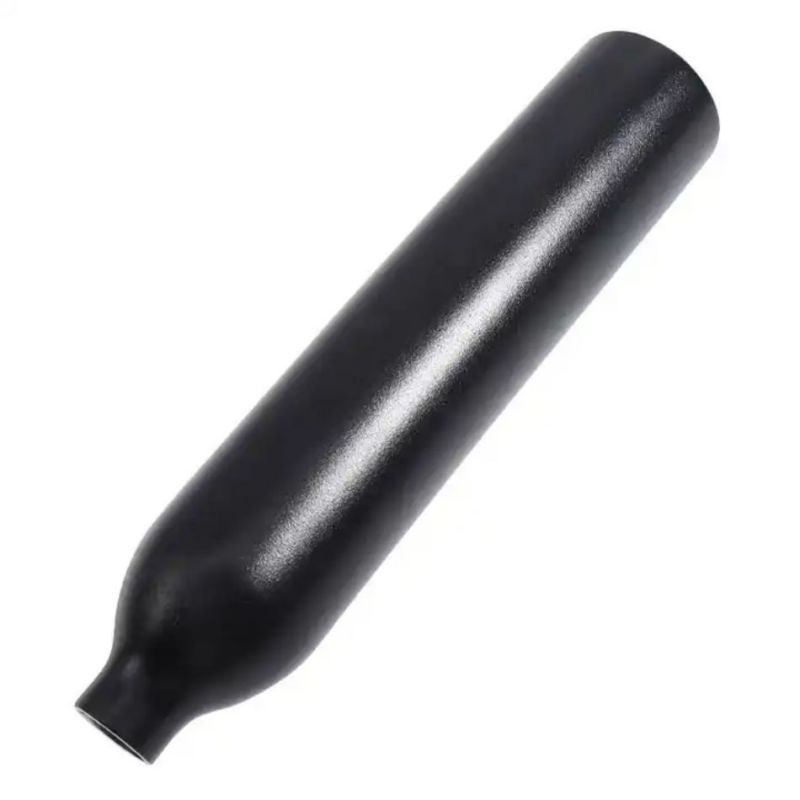

TUXING TXAL0045 Flat Bottom 0.45L 450CC 3000PSI 200BAR Aluminum Tank
Capacity: 0.45L
Diameter: 61mm
Length：310mm
Tank Thread: M18x1.5
Working pressure:30mpa/300bar /4500psi
Test Pressure: 40mpa/400bar/6750psi
Item No :
TXAL0045-FOrder(MOQ) :
10(We also support sample service.)Payment :
We support Visa, Mastercard, Paypal, and Bank wire transfer payment. Also Wechat QR code or Alipay payment etc.Product Origin :
Fujian, ChinaColor :
BlackShipping Port :
Xiamen or QuanzhouLead Time :
3-7daysWeight :
1KG
Capacity: 0.45L
Diameter: 61mm
Length：310mm
Tank Thread: M18x1.5
Working pressure:30mpa/300bar /4500psi
Test Pressure: 40mpa/400bar/6750psi
Noted: We also support sample service.
FACTORY SHOW
CERTIFICATE
FAQ
1.Q: What is the maximum working pressure of your gas cylinders?
A: The maximum working pressure of our gas cylinder is 30mpa/300bar/4500psi.
2.Q: What is the material of your gas bottle?
A: The materials of our gas cylinders are carbon fiber and aluminum alloy.
3.Q: What is the thread on your gas cylinder?
A: The thread of our gas cylinder is M18*1.5. （We have other threads. If you need, you can contact us. ）
4.Q: What scenarios can your gas cylinders be used in?
A: Diving, paintball and outdoor shooting activities.
5.Q: What is the lifespan of your gas cylinders?
A: The longest lifespan of our gas cylinders is generally 15 years.
6.Q: For safety reasons, how often should your gas cylinders be tested?
A: It is generally recommended to test every three years.
7.Q: What is the hydraulic test pressure of your gas cylinders?
A: The hydraulic test pressure of our gas cylinders is generally 500bar.
8.Q: What capacity cylinders do you have?
A:We have carbon fiber cylinders such as 0.22L, 0.3L, 0.36L, 0.42L, 0.45L, 0.48L, 0.5L, 0.58L, 0.7L, 1.1L, 2L, 3L, 6.8L, 9L and 12L, etc.
9.Q: Do you accept OEM &ODM orders?
A:Yes,we do.
Inflation method: Electric air pump / Scuba refill adapter/ High pressure hand pump
Inflation method: Electric air pump / Scuba refill adapter
C300 0.5L high pressure 360-degree portable gas tank diving equipment. The maximum working pressure is 20mpa/200bar/3000psi.
S700 2L high pressure 3000psi 200bar scuba diving tank equipment The maximum working pressure---20mpa/200bar/3000psi.
Model number: S300 Volume: 0.5L Using time: About 6minutes Inflation method: Electric air pump / Scuba refill adapter/ High pressure hand pump
Model number: S500 Volume: 0.7L Using time: About 8minutes
The cold extrusion process has high strength and great pressure. The cold work strengthening characteristics of cold deformation of metal materials are adopted, that is, the metal blank is in the state of triaxial compressive stress during the extrusion process, and the material after deformation is compact and has continuous fiber flow direction, so the strength of the workpiece is greatly improved.
Small, light weight, easy to carry, flat bottom, high pressure tolerance, light weight, reliable failure mode.adopt the same aluminum plate drawing process as Europe and America, instead of aluminum ingots drawing process.The larger the diameter, the more prominent the technological advantages, and energy conservation and environmental protection.No aluminum ingot drawing process turning process, to ensure the uniformity of the wall thickness of different batches of products, stable pressure.
