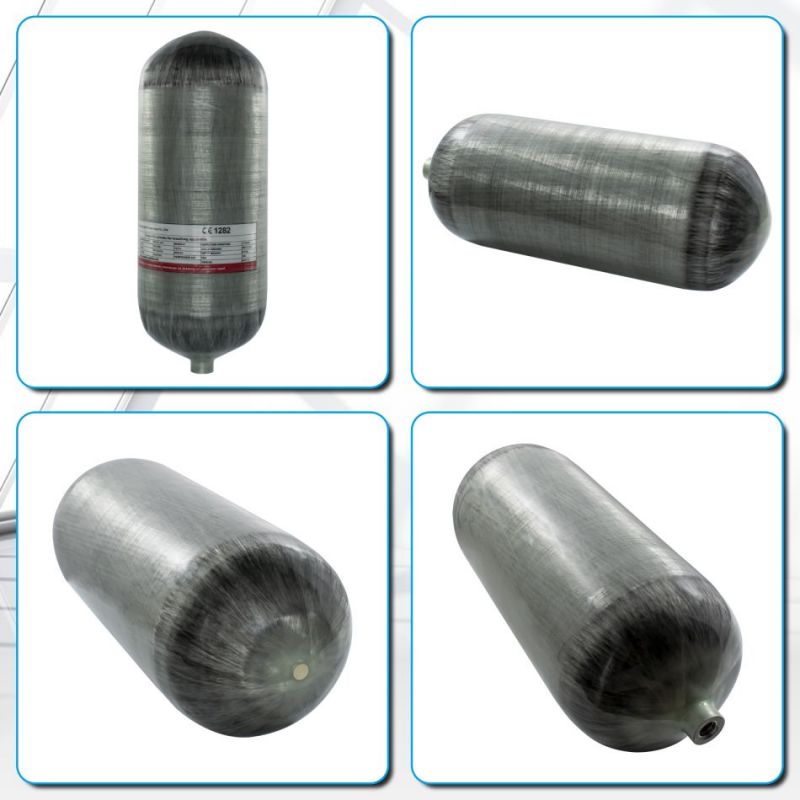

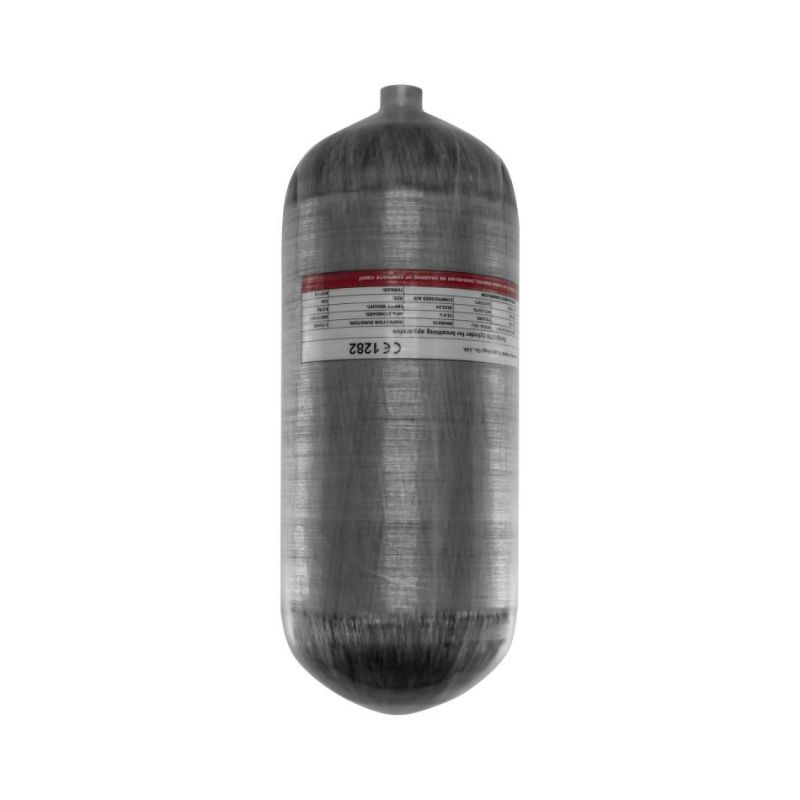

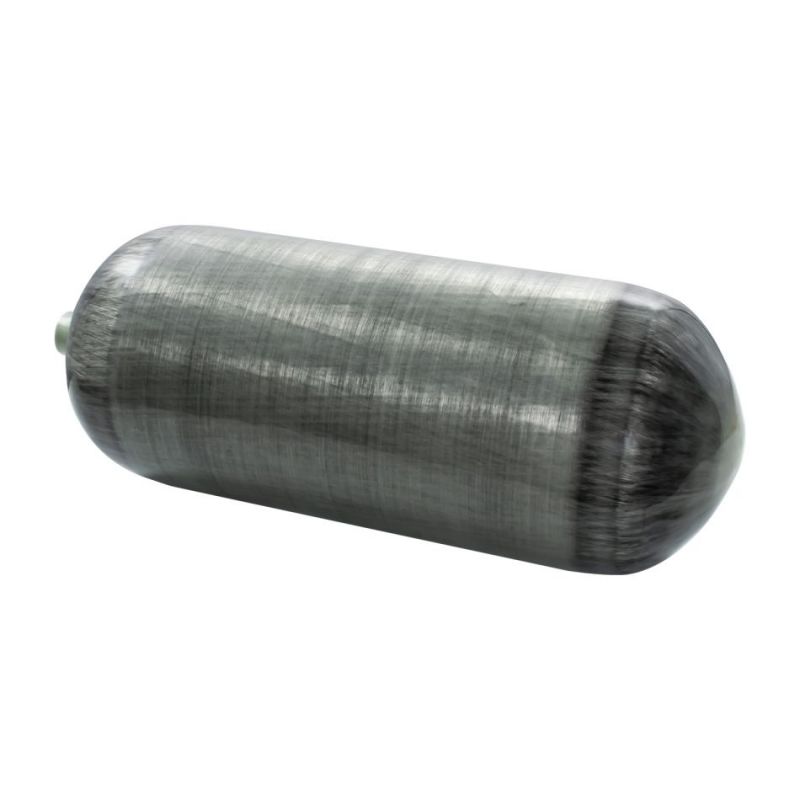

TUXING High Pressure 12L 4500PSI 300BAR Carbon Fiber Scuba Tank

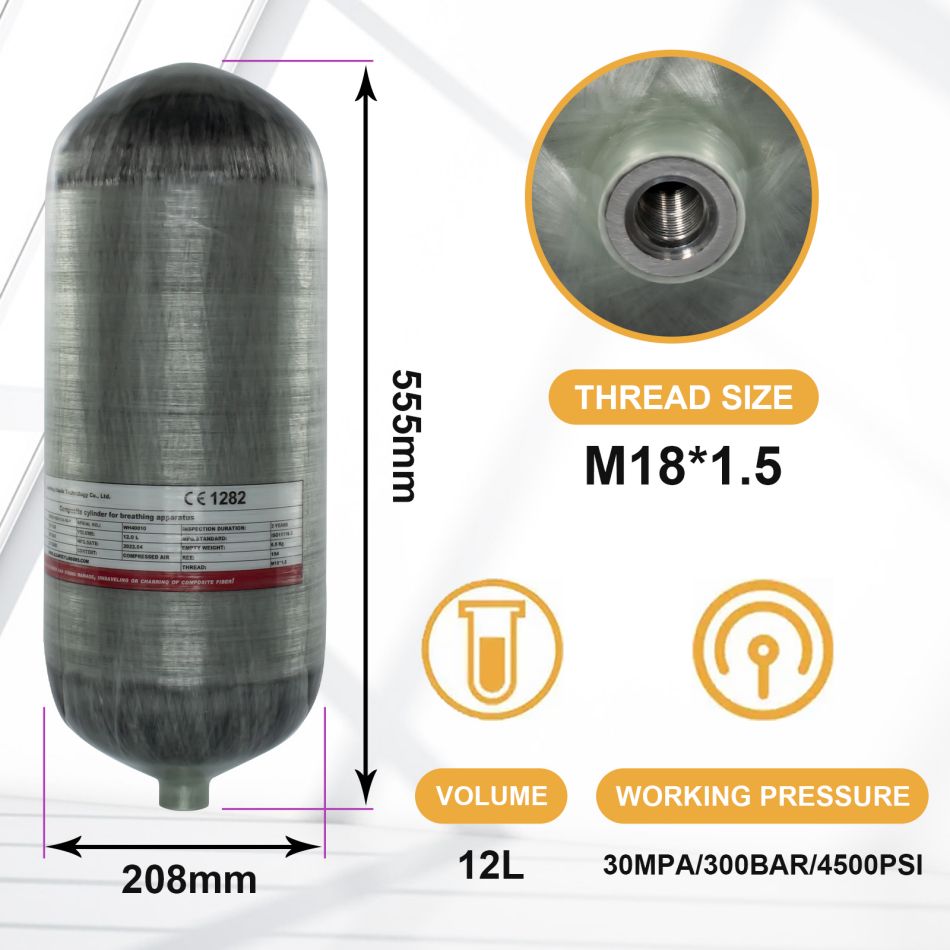

Product Capacity:12 liters capacity, Product Neck Thread: M18x1.5-6H thread.

Product Pressure: 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification: CE / EN approved (Not DOT), Inspection cycle: 3Yr, Service life: 15Yr.

Product Structure: Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.

  • Item No :

    TXCGS1200
  • Order(MOQ) :

    1
  • Payment :

    We support Visa, Mastercard, Paypal, and Bank wire transfer payment. Also Wechat QR code or Alipay payment etc.
  • Product Origin :

    Fujian, China
  • Color :

    Grey
  • Shipping Port :

    Xiamen or Quanzhou
  • Lead Time :

    3-7days
  • Weight :

    7KG

12L Gas Cylinder Composite

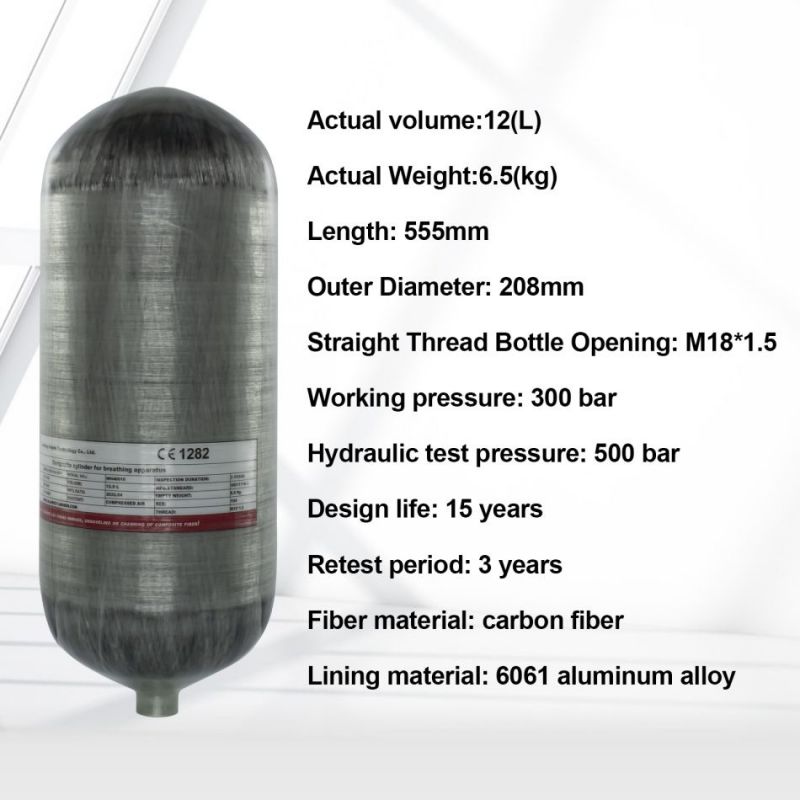

Product Capacity:12 liters capacity, Product Neck Thread: M18x1.5-6H thread.

Product Pressure: 30mpa / 300bar / 4500psi working pressure, 50Mpa hydrostatic test pressure, 102Mpa minimum burst pressure, Product Certification: CE / EN approved (Not DOT), Inspection cycle: 3Yr, Service life: 15Yr.

Product Structure: Using high-quality raw material AL6061 aluminum alloy liner with full-wrapped carbon fiber and glass fiber winding, external surface treatment is epoxy coated, high strength features creep resistance, shock resistance and corrosion resistance.

Product Testing Performance: One of the safety tests is the hydrostatic test pressure, for carbon fiber cylinders, it can reach 50Mpa. The other is the minimum burst pressure, which can reach 102Mpa for carbon fiber cylinders, can hold more gas under the same volume conditions.

Product Advantage: Carbon fiber composite air cylinder is a new material cylinder developed in recent years. Compared with the traditional steel cylinders, the weight is reduced by 70%, the corrosion resistance is strong, there is no magnetic property, the performance is stable, and the inner surface is specially treated to ensure that the holding gas is clean and has no odor, long service life (The service life is 15 years).

WIDE APPLICATION

12L Breathing Air Cylinder

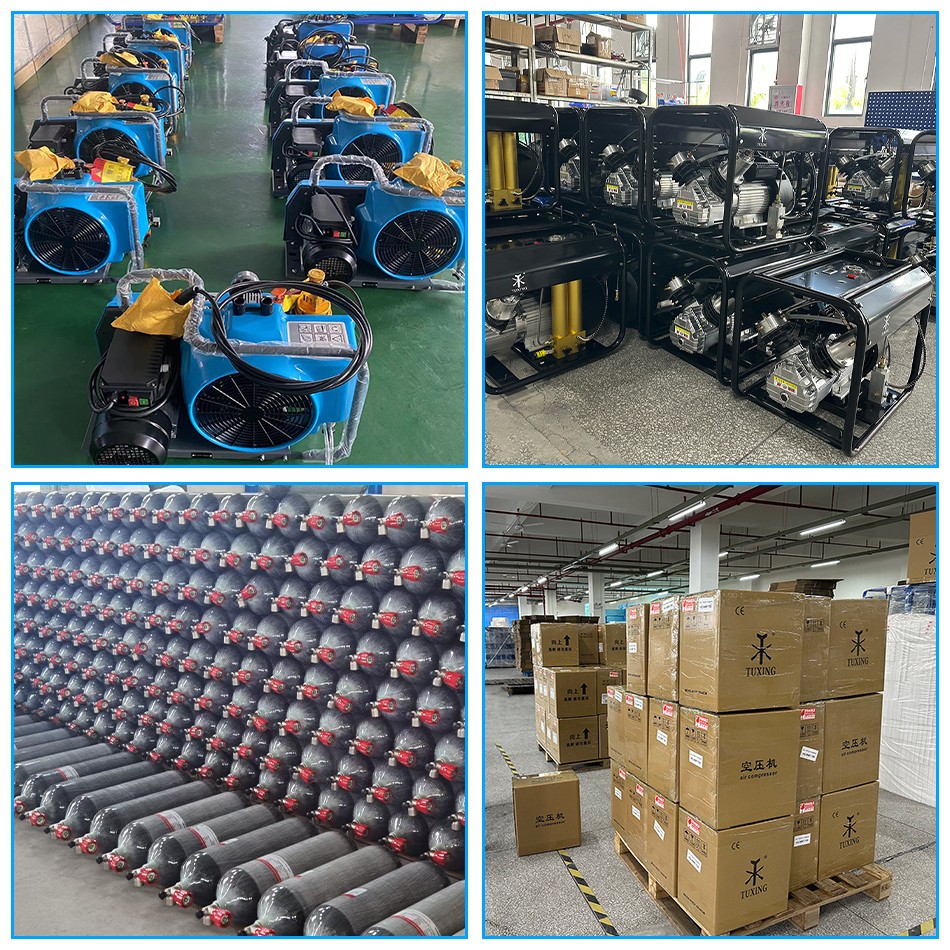

FACTORY SHOW

Composite Cylinder For Scuba Diving

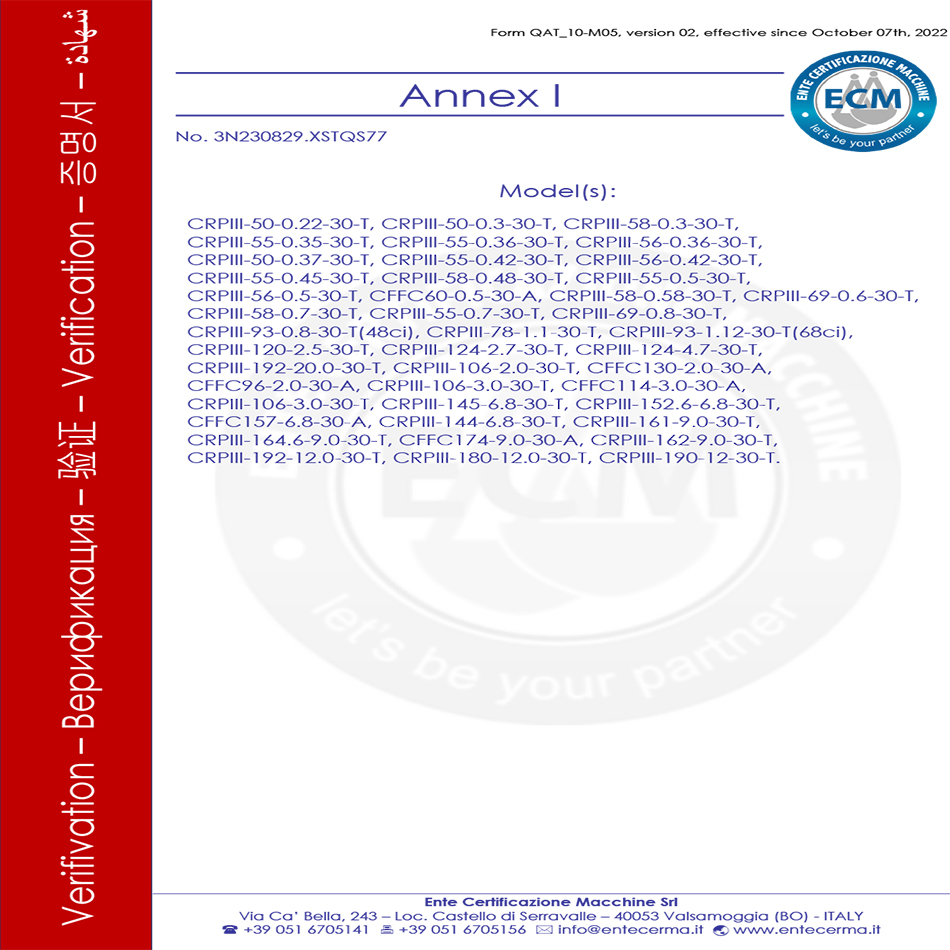

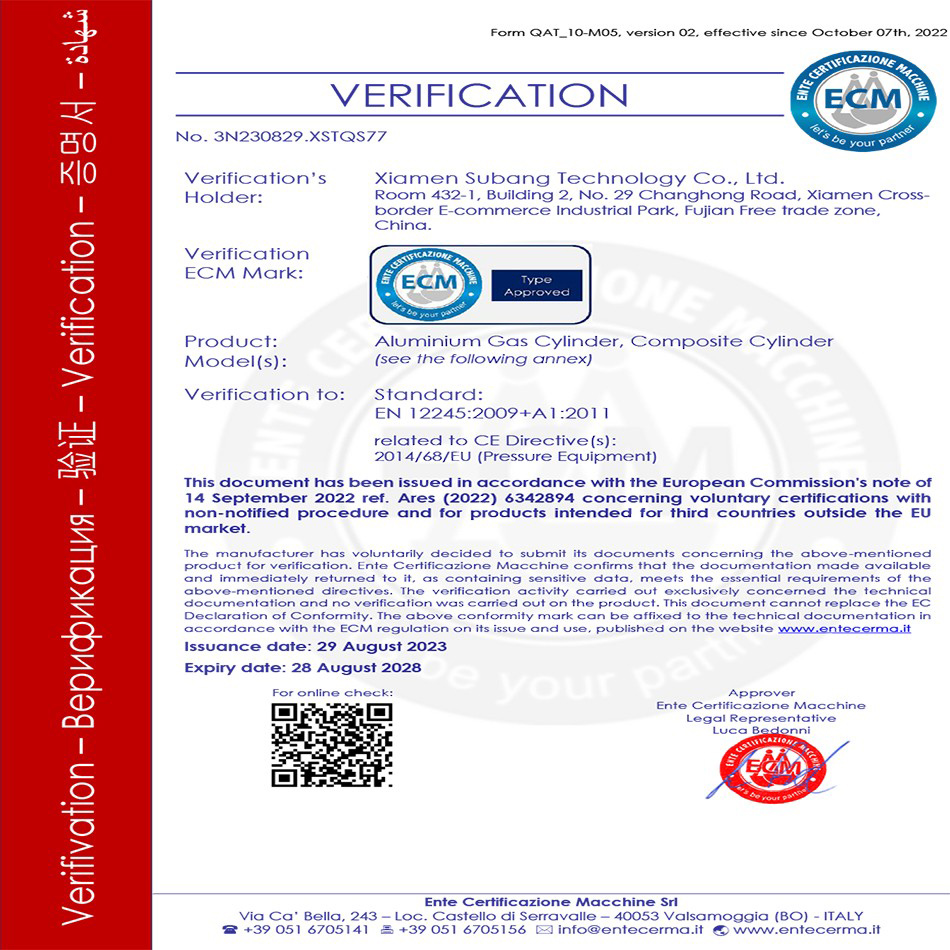

CERTIFICATE

4500 psi carbon fiber scuba tank

Hpa Composite Cylinder

FAQ

1.Q: What is the maximum working pressure of your gas cylinders?
A: The maximum working pressure of our gas cylinder is 30mpa/300bar/4500psi.
2.Q: What is the material of your gas bottle?
A:The materials of our gas cylinders are carbon fiber and aluminum alloy.
3.Q:What is the thread on your gas cylinder?
A:The thread of our gas cylinder is M18*1.5.(We have other threads. If you need, you can contact us.)
4.Q:What scenarios can your gas cylinders be used in?
A:Diving, paintball and outdoor shooting activities.
5.Q:What is the lifespan of your gas cylinders?
A:The longest lifespan of our gas cylinders is generally 15 years.
6.Q:For safety reasons, how often should your gas cylinders be tested?
A:It is generally recommended to test every three years.
7.Q:What is the hydraulic test pressure of your gas cylinders?
A:The hydraulic test pressure of our gas cylinders is generally 500bar.
8.Q:What capacity cylinders do you have?
A:We have carbon fiber cylinders such as 0.22L, 0.3L, 0.36L, 0.42L, 0.45L, 0.48L, 0.5L, 0.58L, 0.7L, 1.1L, 2L, 3L, 6.8L, 9L and 12L, etc.
9.Q: Do you accept OEM &ODM orders?
A:Yes,we do.
